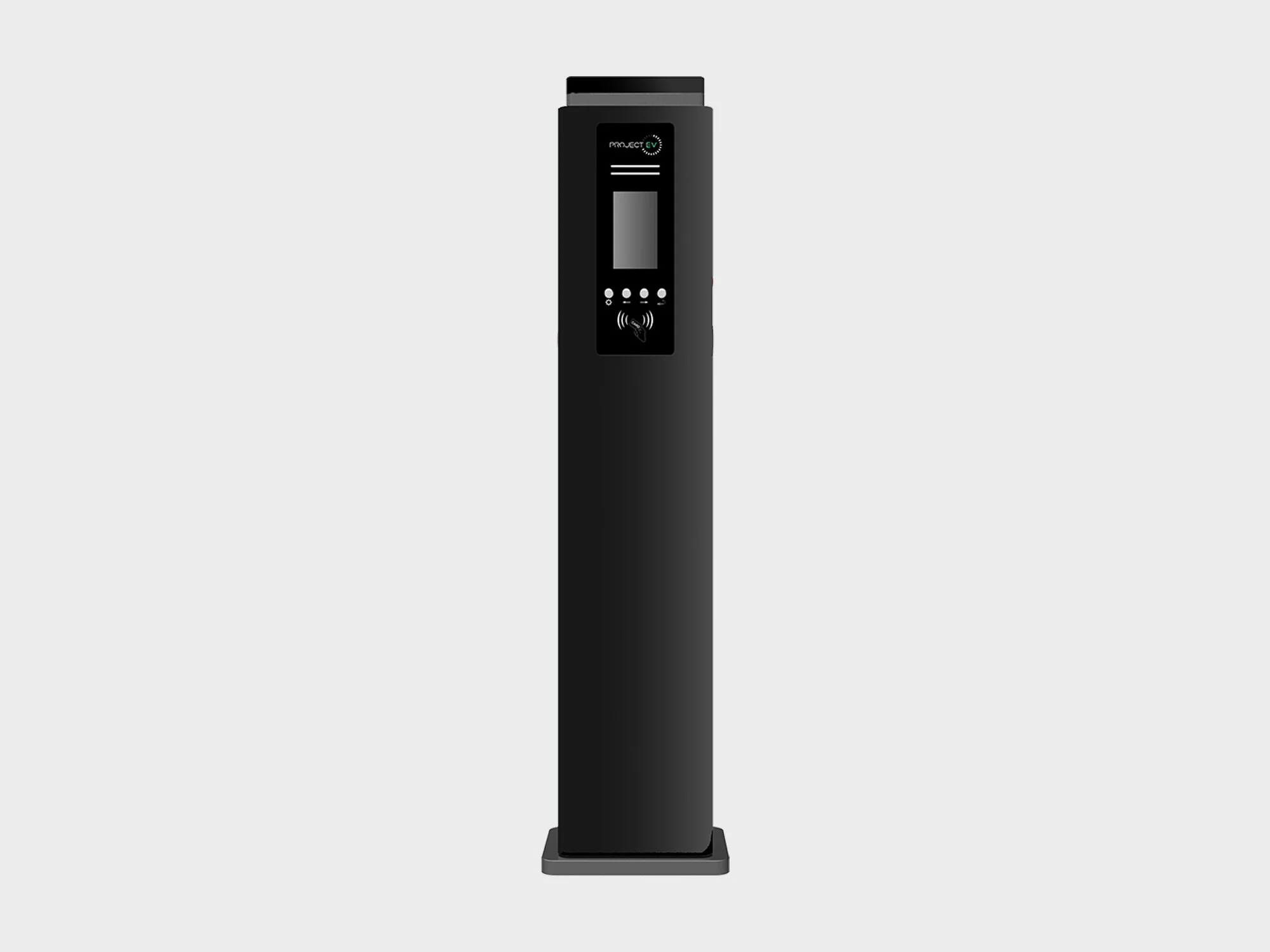

Project EV Charging Pedestal

Project EV charging pedestal

The EVA-22D-SE-RFID is a three-phase dual AC charging unit, packed with features, such as a no earth spike required installation. The dual gun charger is perfect for both domestic and commercial use with a market-leading five-year warranty. This charger also has time shifting capabilities giving you the opportunity to save £100’s per year*, a cable lock system for added security, free mobile monitoring app, and a dynamic load balancing system.

The EVA-22D-SE-RFID is ready out of the box and perfect for any domestic electric vehicle charging. The RFID unit comes with one RFID card as standard, with additional RFID cards (EV-RFID) available for purchase.

    • Dual Socketed EV Charger Ideal for Domestic and Small Scale Commerical Use

    • 2x Type 2 Sockets

    • Untethered

    • Three Phase

    • Comes with 1 RFID Card

    • Control Via RFID, Plug-and Charge or Project EV App

    • App Allows Customising of Charging Schedules, Prioritising of Off-Peak Charging and Charging Record Access

    • LED Status Indicator

    • Built-In Earth Spike

    • On-Board RCBO

    • Dynamic Load Balancing

    • Cable Lock System

    • IP65 Rated

    • Input Amps: 63A

    • Input Voltage: 415V

    • Max Power Output: 22kW Per Socket

    • Emergency Stop Button

    • Over/Under Voltage Protection

    • Overload Protection

    • Short Circuit Protection

    • Earth Leakage Protection

    • Over-Temp Protection

    • Surge Protection

    • PEN Fault Protection

    • Dimensions (hxwxd): 1635mm x 320mm x 175mm

    • Weight: 30kg

    • 5 Year Warranty
